Marine Lighting


Jamaica

This large recessed ceiling light consists
of a one-piece 316 stainless steel bezel
housing and an aluminum base.
Frosted tempered glass lens. Supplied
with 12V 20W JC type halogen bulb.
Spring mounting enables easy installation
without fasteners.

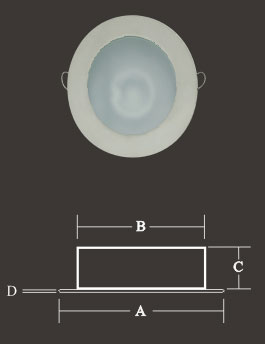

Flange: 154mm dia.
Lens: 105mm dia.
Cutout: 118mm dia.
Max Watt: 20W

Part Number
YT10818P Polished
YT10818G Gold-plated
YT10818N Satin nickel-plated
YT10818W White powder coated



Inchs

Millimeters

A

6

154

B

4 1/2

115

C

1 1/4

35

D

1/8

3
