Marine Lighting


Merope

An adjustable model that brings light at
the desired angle. Bezel is made of 316
stainless steel.
Mounted recessed by springs.
Supplied with clear glass lens and
12V 20W JC type halogen bulb.
Flange: 80mm dia.
Cutout: 70mm dia
Max Watt: 20W


Part Number
YT10823P Polished
YT10823G Gold-plated
YT10823N Satin nickel-plated
YT10823W White powder coated

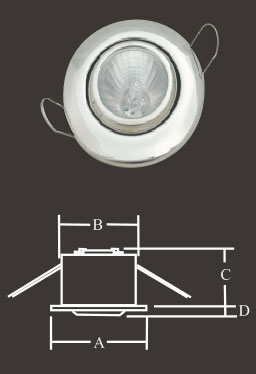

Inchs

Millimeters

A

3.15

80

B

2.60

66

C

1.30

33

D

0.33

8.5
