Marine Lighting


Asterope

Spring mounting recessed down light.
Aluminum reflector distributes beam
evenly. 316 stainless steel bezel
accented by chamfered shape.
Supplied with 12V 20W JC type Halogen
Flange: 80mm dia.
Lens: 52mm dia.
Cutout: 62mm dia.
Max Watt: 20W

Part Number
YT10820P Polished
YT10820G Gold-plated
YT10820N Satin nickel-plated
YT10820W White powder coated

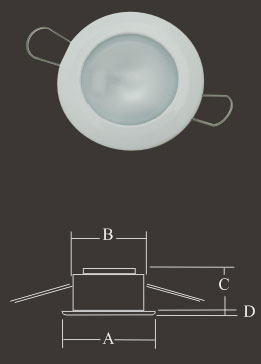

Inchs

Millimeters

A

3.15

80

B

2.60

66

C

0.90

23

D

0.20

5
