Antigua

A Larger version simliar to Montserrat
Silicone gasket keeps water from splashing in.
Frosted tempered glass lens.
Flange: 101mm dia.
Lens: 67mm dia.
Cutout: 64mm dia
Max Watt: 20W

Part Number
YT10812P Polished
YT10812G Gold-plated
YT10812N Satin nickel-plated
YT10812W White powder coated

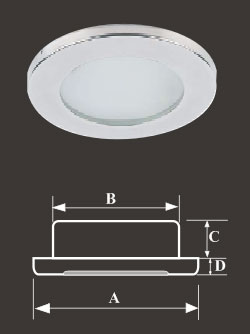

Inchs

Millimeters

A

4

100

B

2 1/ 2

64

C

1

25

D

1/ 2

10
