Marine Lighting

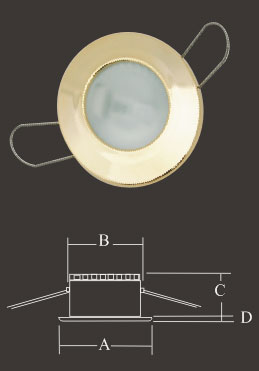

Atlas

A scaled-down version of the Asterope
with frosted flat lens. Mounting
spring enables faterner-free installation.
Comes with 12V 10W JC type halogen bulb.
Flange: 65mm dia.
Lens 37mm dia.
Cutout:53mm dia
Max Watt: 10W
Part Number
YT10821P Polished
YT10821G Gold-plated
YT10821N Satin nickel-plated
YT10821W White powder coated



Inchs

Millimeters
A

2.56

65
B

2.09

53
C

0.98

25
D

0.12

3
