Phad

Mounted recessed. The low profile
oval light glows in a luxuriously
large size. 316 stainless steel bezel.
A seal is applied to keep dust and water out.
With gasket for cushioned mounting.
Flange: 94 x 150mm.
Cutout: 60 x 116mm.
Comes with 12V 20W JC type halogen bulb.

Part Number
YT10827P Polished
YT10827G Gold-plated
YT10827N Satin nickel-plated
YT10827W White powder coated

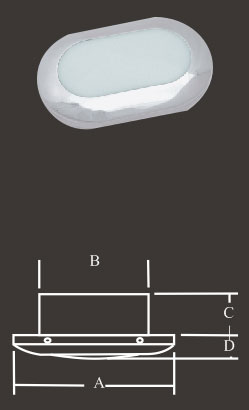

Inchs

Millimeters
A

5.91

150
B

4.72*2.48

120*63
C

1.18

30
D

0.79

60
