Bussmann Series 185 Thermal Circuit Breakers
Ignition Protected-Safe for installation aboard gasoline powered boats
All Components meet SAE J1171 External ignition protection requirements
Waterproof
Combines switching and circuit breaker function into one unit
Trip Free-cannot be held closed after trip

Specifications

Interrupt Capacity

3000 Amperes DC

Circuit Breaker Type

Thermal

Case Material

Phenolic

Maximum Voltage

42 Volts DC

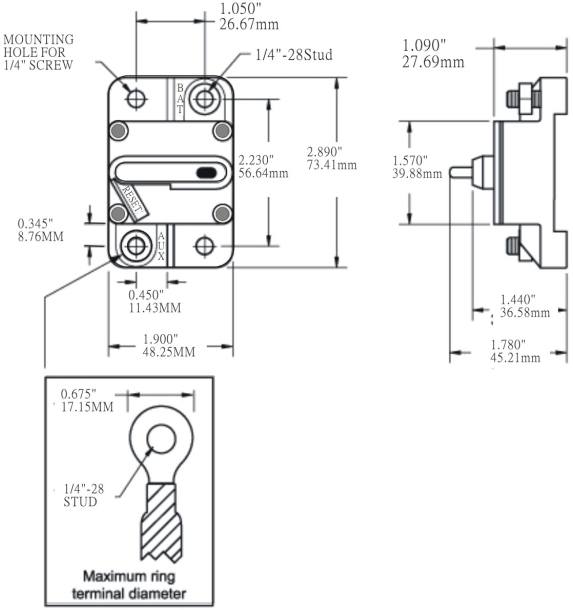

Panel Mount

Item No	Amperage
7008	25A
7009	30A
7010	35A
7005	40A
7000	50A
7011	60A
7012	70A

Item No	Amperage
7014	80A
7006	90A
7002	100A
7007	110A
7013	120A
7015	135A
7004	150A

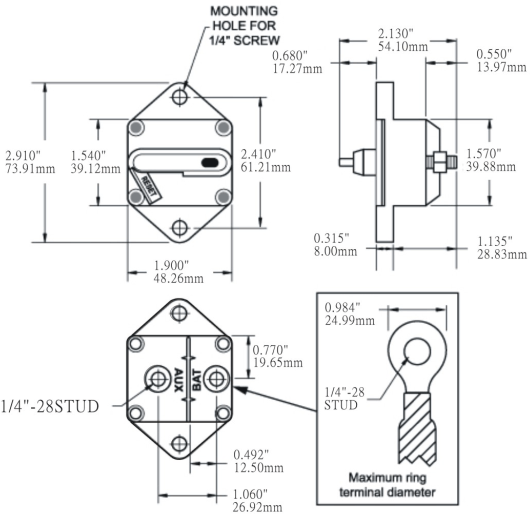

Surface Mount

Item No	Amperage
7108	25A
7109	30A
7110	35A
7105	40A
7100	50A
7111	60A
7112	70A

Item No	Amperage
7114	80A
7106	90A
7102	100A
7107	110A
7113	120A
7115	135A
7104	150A

Used with Bussmann Series 185 Panel Mount Circuit Breakers
