AC/DC Magnetic Circuit Breakers
Specifications

Circuit Breaker Type

Magnetic Hydraulic-Trip Free

Maximum Amperage

50 Amperes

Maximum Voltage

277 Volts AC/65 Volts DC

Rated Switch Cycles

10,000@rated amperage and volt

Mounting screw

#6-32

Terminal screw

#10-32 SS with external tooth lockwasher

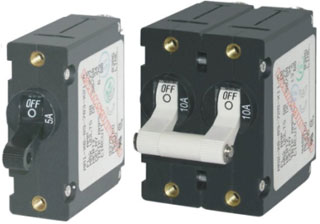

One Pole Two Pole Two Handle

Amperage

Handle Color

5A

Red/White/Black

10A

Red/White/Black

15A

Red/White/Black

20A

Red/White/Black

30A

Red/White/Black

40A

Red/White/Black

50A

Red/White/Black

Amperage

Handle Color

15A

Red/White/Black

20A

Red/White/Black

30A

Red/White/Black

40A

Red/White/Black

50A

Red/White/Black
