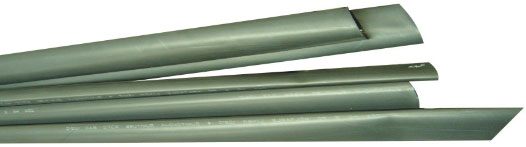

Heat Shrink Sleeve

Item No Nominal
Size		 As supplied After shrinkage Length
　 　 Inside
Diameter		 Thickness Inside
diameter		 Thickness 　
K7W3F2-1/8 1/8 3.2 0.35 0.6 0.95 1M
K7W3F2-3/16 3/16 4.8 0.45 1.5 1.1 1M
K7W3F2-1/4 1/4 6.4 0.45 2.0 1.2 1M
K7W3F2-3/8 3/8 9.5 0.45 3.0 1.3 1M
K7W3F2-1/2 1/2 12.7 0.50 4.0 1.4 1M
K7W3F2-3/4 3/4 19.1 0.55 8.0 1.6 1M
K7W3F2-1 1 25.4 0.65 10.2 1.9 1M
K7SCM-11 　 28.0 0.75 9.5 　 1.22M
K7SCM-13 　 33.0 　 10.2 　 1.22M
K7SCM-15 　 38.1 　 12.7 　 1.22M
K7SCM-17 　 44.0 　 14.0 　 1.22M
K7SCM-20 　 52.1 　 18.2 　 1.22M
Unit:mm

Heat Shrink Sleeve
 Material: Rigid Shrinkable P.V.C.
Maximum Service Temp: 80 C
Color: Red, White, Black, Blue
Packing: 100M/Roll
Item No Lay Flat
Diamension		 Convert to Dia Ø Shrinkable
range
K2HS-6.5 6.5 4.1 6.5-3.6
K2HS-8.5 8.5 5.2 8.5-4.5
K2HS-12 12 7.6 12-6.5
K2HS-15 15 10 15-8.5
K2HS-20 20 13 20-11
K2HS-30 30 19 30-16
K2HS-40 40 25 40-22
K2HS-50 50 32 50-28
K2HS-60 60 38 60-33
K2HS-70 70 44 70-37
K2HS-80 80 50 80-42
K2HS-100 100 63 100-55
K2HS-120 10 76 120-65
K2HS-150 150 95 150-90
K2HS-170 170 108 170-94
K2HS-200 200 127 200-110
Unit:mm
