Heavy Duty Terminal & Lugs

Heavy Duty Terminal & Lugs

Terminal & Lugs

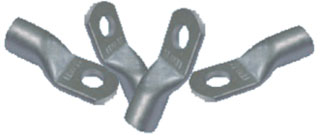

Heavy Duty Lugs
• Made with pure Copper for maximum Current flow.
• Tinned plated for corrosion resistance

mm²	AWG	Stud Size	Item No
70	2/0AWG	6.5	D10C70-6
		8.5	D10C70-8
		10.5	D10C70-10
		13.0	D10C70-12
95	3/0AWG	8.5	D10C95-8
		10.5	D10C95-10
		13.0	D10C95-12
120	4/0AWG	8.5	D10C120-8
		10.0	D10C120-10
		13.0	D10C120-12
		15.0	D10C120-14
150	250MCM 300MCM	8.5	D10C150-8
		10.0	D10C150-10
		13.0	D10C150-12
		15.0	D10C150-14

mm²	AWG	Stud Size	Item No
25	4AWG	6.5	D10C25-6
		8.5	D10C25-8
		10.5	D10C25-10
		13.0	D10C25-12
35	2AWG	6.5	D10C25-14
		8.5	D10C35-8
		10.5	D10C35-10
		13.0	D10C35-12
50	1/0AWG	6.5	D10C50-6
		8.5	D10C50-8
		10.5	D10C50-10
		13.0	D10C50-12

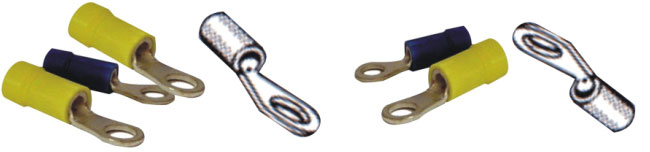

Insulated Ring Terminals

Item No	Stud Size	Wire Size
D3001.25-5F	5.3	22~16AWG
D3002-4F	4.3	16~14AWG
D3002-5F	5.3	16~14AWG
D3003.5-4F	4.3	14~12AWG
D3003.5-5F	5.3	14~12AWG
D3003.5-6F	6.4	14~12AWG

Qty/Pkg: 100piece

Item No	Stud Size	Wire Size
D3005.5-4F	4.3	12~10AWG
D3005.5-5F	5.3	12~10AWG
D3005.5-6F	6.4	12~10AWG
D3005.5-8F	8.4	12~10AWG
D3005.5-10F	10.5	12~10AWG
D3008-5F	5.3	8AWG
D3008-6F	6.4	8AWG
