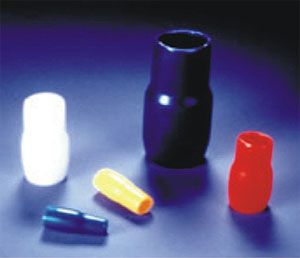

 Vinyl Wire End Cap
 Material: Soft P.V.C.
Maximum service temp: 80°
For the insulation works of wire end terminal. Performing the work with a simple one-touch to tighten and seal against dirt, moisture and water
Standard color: Red, white, blue, yellow, black
Item No Wire Suitable(mm2/Awg) Packing
K1-V-1.25 1.25/16 100Pcs
K1-V-2.0 2.0/14
K1-V-3.5 3.5/12
K1-V-5.5 5.5/101
81-V-8.0 8.0/8
K1-V-14 14/6

Item No Wire Suitable(mm2/Awg) Packing
K1-V-22 22/4 100Pcs
K1-V-38 38/1
K1-V-60 60/     2/0
K1-V-80 80/     3/0
K1-V-100 100/     4/0
K1-V-125 250kcmil
