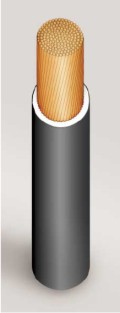

Flexible Shipboard Switchboard / Panel Wire

Application
Flexible shipboard cable suitable for all shipboard and marine application

Construction
Conductor:Finely stranded annealed tinned copper to IEC 60228 Class 5&6
Insulation:LSFLEXR-30(HF-EPR)cross-linked, Polyolefinic, Thermoset, Low Smoke, Zero Halogen, Resists oil, skydrol, petol, sea water, ozone and UV

Operating Temp.
-40
to 90
Voltage Rating:600/1000Volts

Approvals:LR, DNV, ABS, BV, GL,U SCG,
Transport Canada Marine Safety

UP Series LSZH Switchboard / Panel wire



Number of Conductors x Cross Section Area(mm2)

Overall Diameter(mm)

Minimum Bending Radius(mm) Maximum Current Rating(Amps) Short Circuit Current(Amps for 1 second) Voltage Drop at 50Hz(mV/Am)
Min Max
1C1.5 2.8 3.2 17 20 219 30.5
1C2.5 3.2 3.6 19 28 365 16.4
1C4 3.7 4.2 22 38 584 10.2
1C6 4.4 4.9 26 48 876 6.81
1C10 5.3 5.9 32 67 1460 4.05
1C16 6.5 7.2 39 90 2336 2.55
1C25 8.1 8.8 48 120 3650 1.62
1C35 9.9 10.2 56 145 5110 1.17
1C50 10.9 11.9 65 185 7300 0.872
1C70 12.7 13.9 76 225 10220 0.615
1C95 14.8 16.1 89 275 13870 0.457
1C120 16.7 18.2 100 320 17520 0.373
1C150 18.7 20.4 112 365 21900 0.316
1C185 20.9 22.7 125 415 27010 0.269
1C240 23.3 25.3 140 490 35040 0.227
1C300 26.0 28.3 156 560 43800 0.202
1C400 29.4 31.9 176 640 58400 0.183
