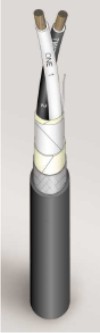

Flexible Shipboard Power & Control

Application
Flexible shipboard cable suitable for all Shipboard and marine application

Construction
Conductor:Finely stranded annealed tinned copper to IEC 60228 Class 5&6
Insulation:LSFLEX R-30(HF-EPR)cross-linked, Polyolefinic, Thermoset, Low Smoke, Zero Halogen, Resists oil, skydrol, petrol, sea water, ozone and UV
Sheath:E-rubber S-50 Cross-Linked, Polyolefinic, Thermoset, Flame Retardant,
Low Smoke, Zero Halogen.
Resists oil, petrol, acid, sea water, ozone and UV.
Pressure extruded to eliminate air cavites.

Operating Temp.
-40
to 90
Voltage Rating:600/1000Volts

Approvals:LR, DNV, ABS, BV, GL, USCG,
Transport Canada Marine Safety



Number of Conductors x Cross Section Area(mm2)

Overall Diameter(mm)

Maximum Current Rating(Amps) Short Circuit Current(Amps for 1 second) Voltage Drop at 50Hz(mV/Am)
Min Max
1C10 7.4 8.1 67 1460 4.05
1C16 8.7 9.6 90 2336 2.55
1C25 10.2 11.2 120 3650 1.62
1C35 11.7 12.8 145 5110 1.18
1C50 13.3 14.6 185 7300 0.878
1C70 15.3 16.7 225 10220 0.623
1C95 17.7 19.2 275 13870 0.467
1C120 19.8 21.5 320 17520 0.385
2C1.5 8.2 8.9 17 219 30.0
2C2.5 9.0 9.8 24 365 16.4
2C4 10.1 11.0 32 584 10.2
2C6 11.3 12.4 41 876 6.8
2C10 13.3 14.5 57 1460 4.05
2C16 15.8 17.1 77 2336 2.55
2C25 18.9 20.5 102 3650 1.61
2C35 21.6 23.4 123 5110 1.17
