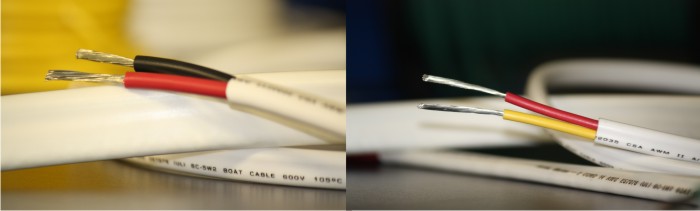

UL1426 Duplex and Triplex Cable

Application
Suitable for all pleasure boat / marine application.

Construction
Conducor:Finely stranded Type III Tinned Copper Conductors
Insulation:
Oil resistant Polyvinyl Chloride
Jacket / sheath:Oil resistant Polyvinyl Chloride
Operating Temp
-20
to +105 (Dry) 75 (Wet)
Voltage600V
Compliance:UL 1426(BC-5W2), ABYC E-11, NMMA, USCG 33 CFR Part 183. SAE J378, 1127, 1128, Marine UL Listed
Resists to
Acids, Abrasion, Flame, Gasoline, Moisture, Oil



Duplex Flat
Cable Size Length
(Ft)
Color Item Number
2C16AWG 100 Red / Black 216080101
  250   216080102
  500   216080103
  1000   216080104
2C14AWG 100 Red / Black 214080101
  250   214080102
  500   214080103
  1000   214080104
2C12AWG 100 Red / Black 212080101
  250   212080102
  500   212080103
  1000   212080104
2C10AWG 100 Red / Black 210080101
  250   210080102
  500   210080103
  1000   210080104


Cable Size Length
(Ft)
Color Item Number
2C16AWG 100 Red / Yellow 216081001
  250   216081002
  500   216081003
  1000   216081004
2C16AWG 100 Red / Yellow 214081001
  250   214081002
  500   214081003
  1000   214081004
2C16AWG 100 Red / Yellow 212081001
  250   212081002
  500   212081003
  1000   212081004
2C16AWG 100 Red / Yellow 210081001
  250   210081002
  500   210081003
  1000   210081004


Made in the USA
